Coolerguys Pro-Metal Thermal controlled filtered Intake and exhaust AV cabinet cooling kit
840556002895

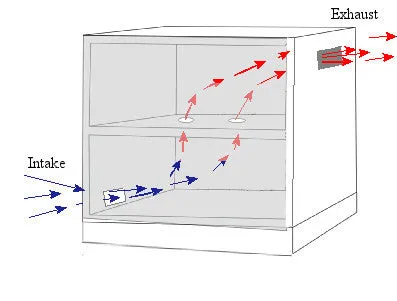

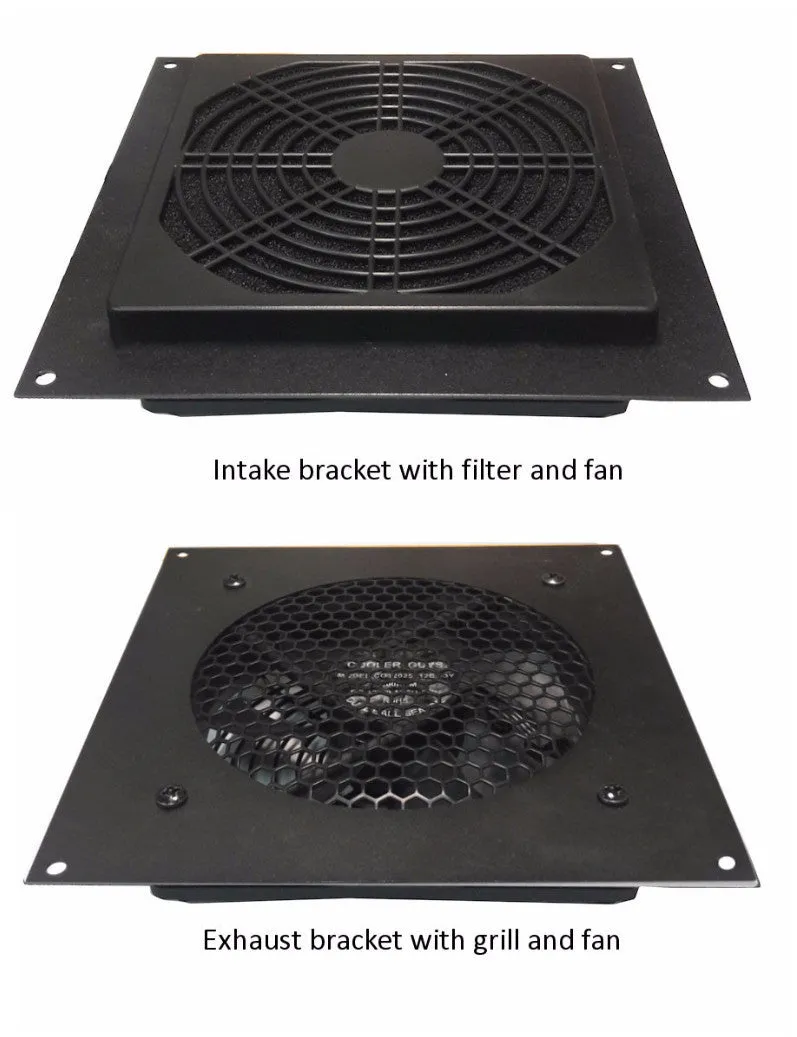

CabCool1201 Single 120mm Fan Cooler Kit including two separate units, one with a filtered intake and one for exhaust

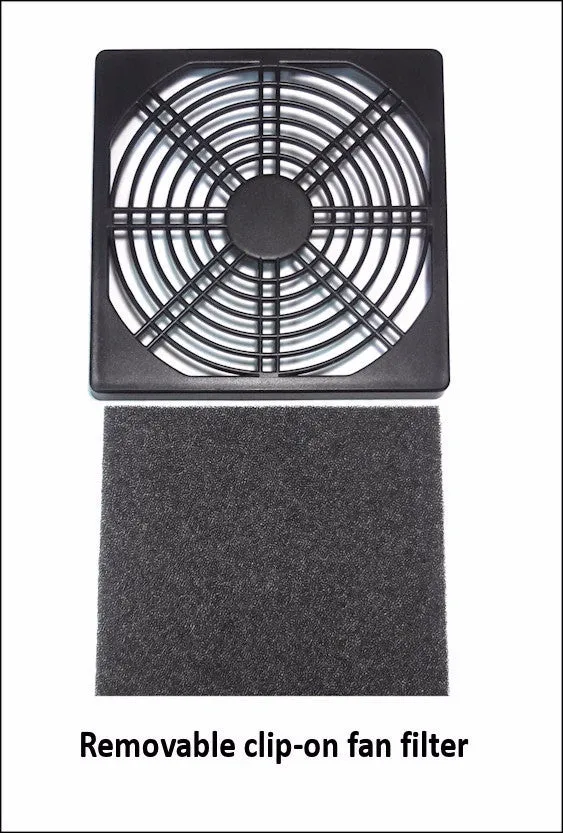

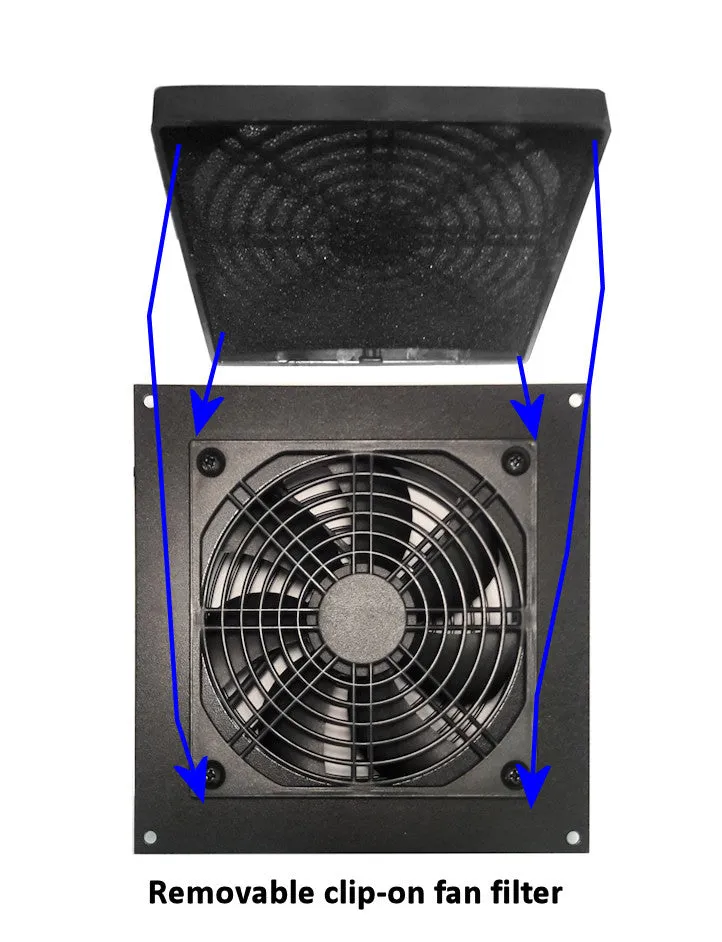

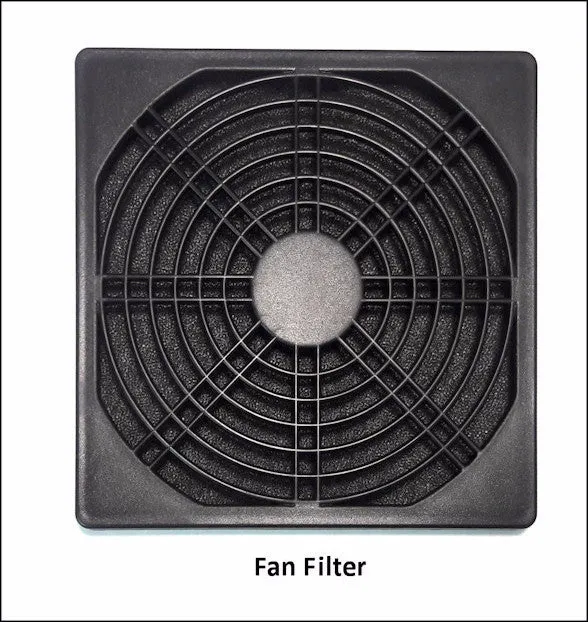

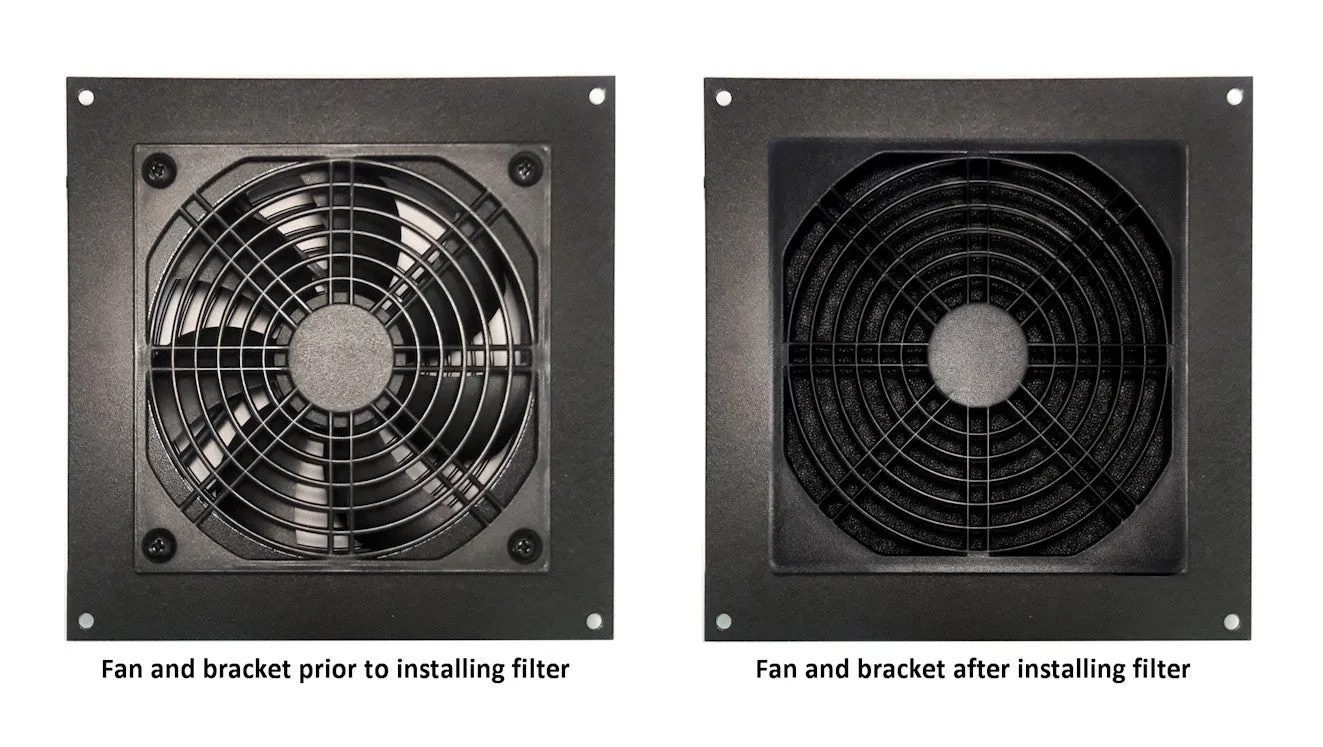

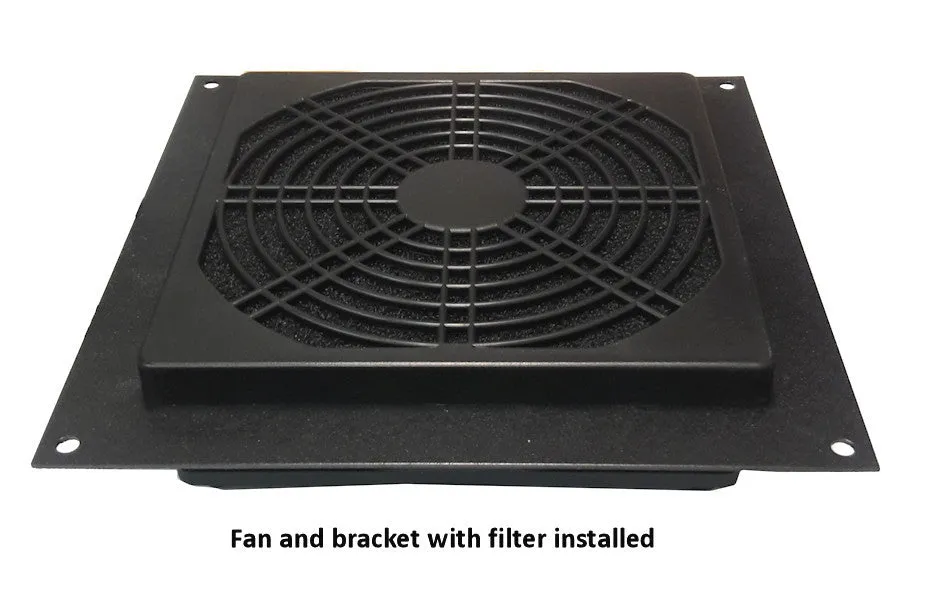

Includes front mount removable filter.
The filter can be purchased and attached to the front of other 120mm bracket kits.
This is a *kit for a single fan unit (6.25" x 6.25" x .125") to cool your cabinet or multimedia center.

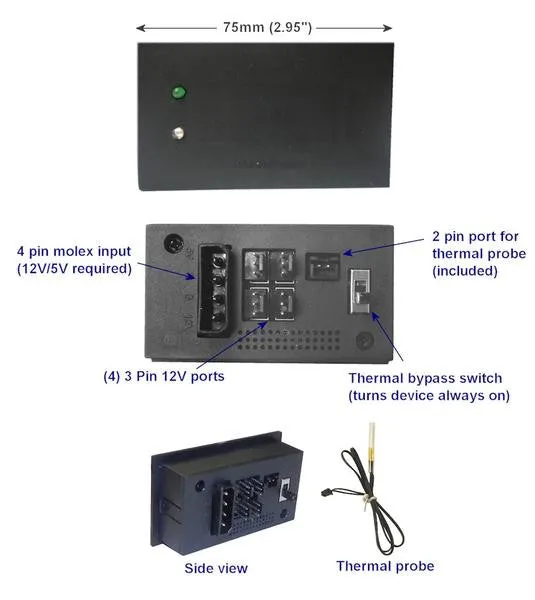

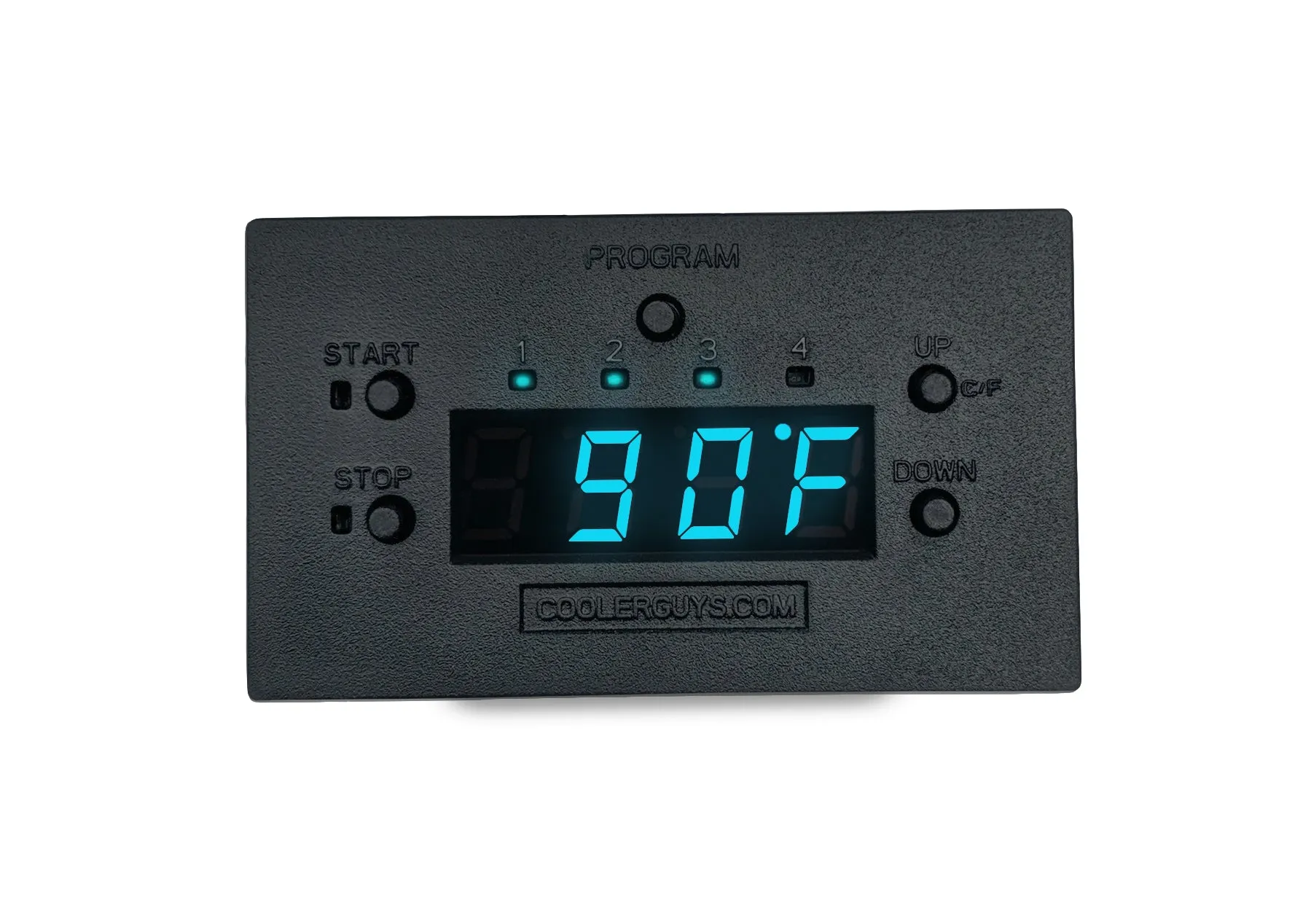

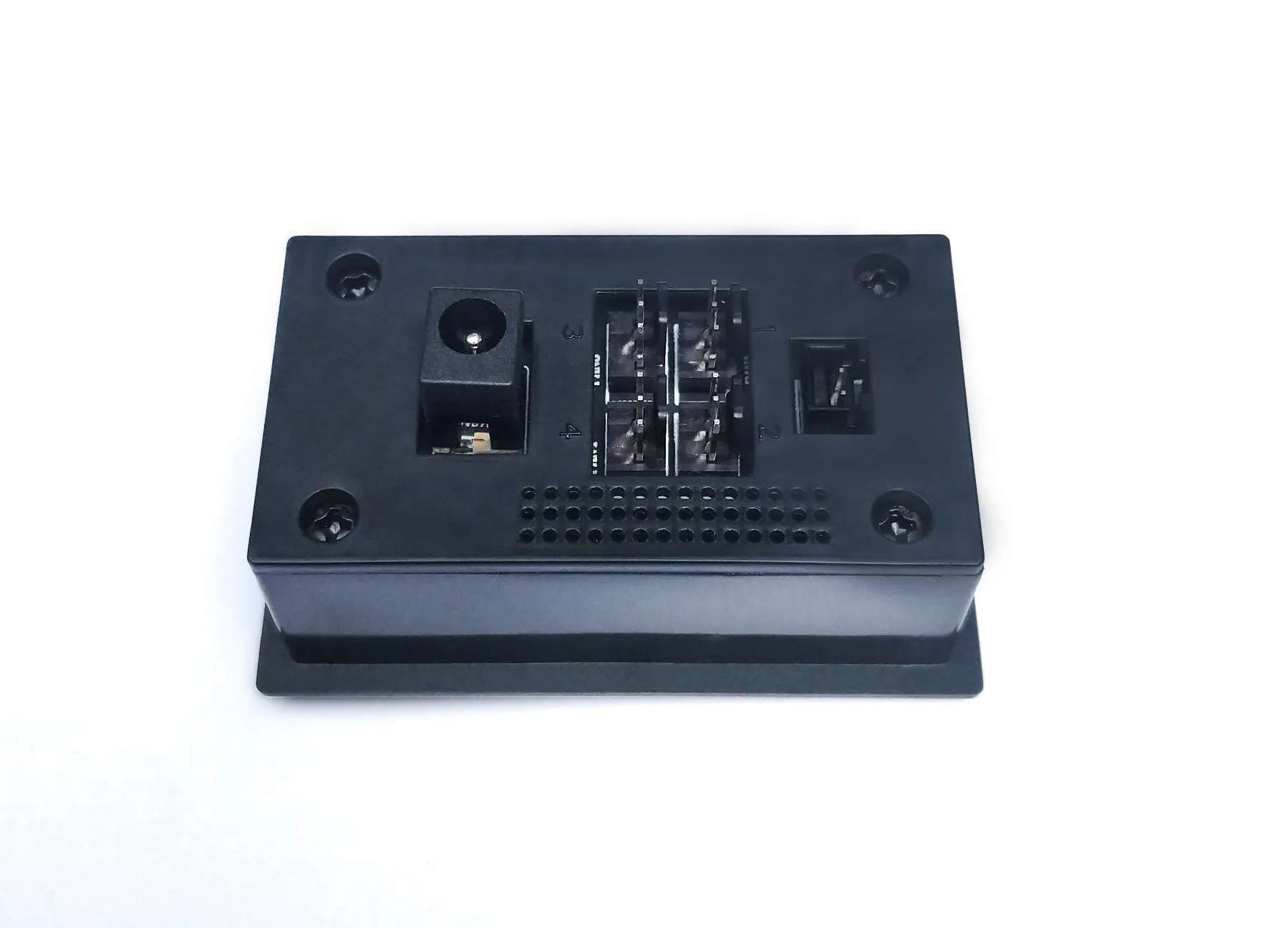

Thermal Controller Style:
- Built-in thermal sensor. Controls power to your fans to cool when you need it. With an external temperature probe wire for spot placement. On @ 87°F Off @ 81°F ( /- 1°)
- (additional $10.00)
Can be mounted on any side of a cabinet, where room permits, by cutting a rectangular hole approximately 5" x 5" (130 x 130mm). Insert completed cooler assembly in a hole and attach to the cabinet with appropriate screws. Fans can be set to blow into or out of the cabinet depending on your needs. If you need additional information
DC 12V fans that are powered by our CS 110v AC to 12v DC Power Supply

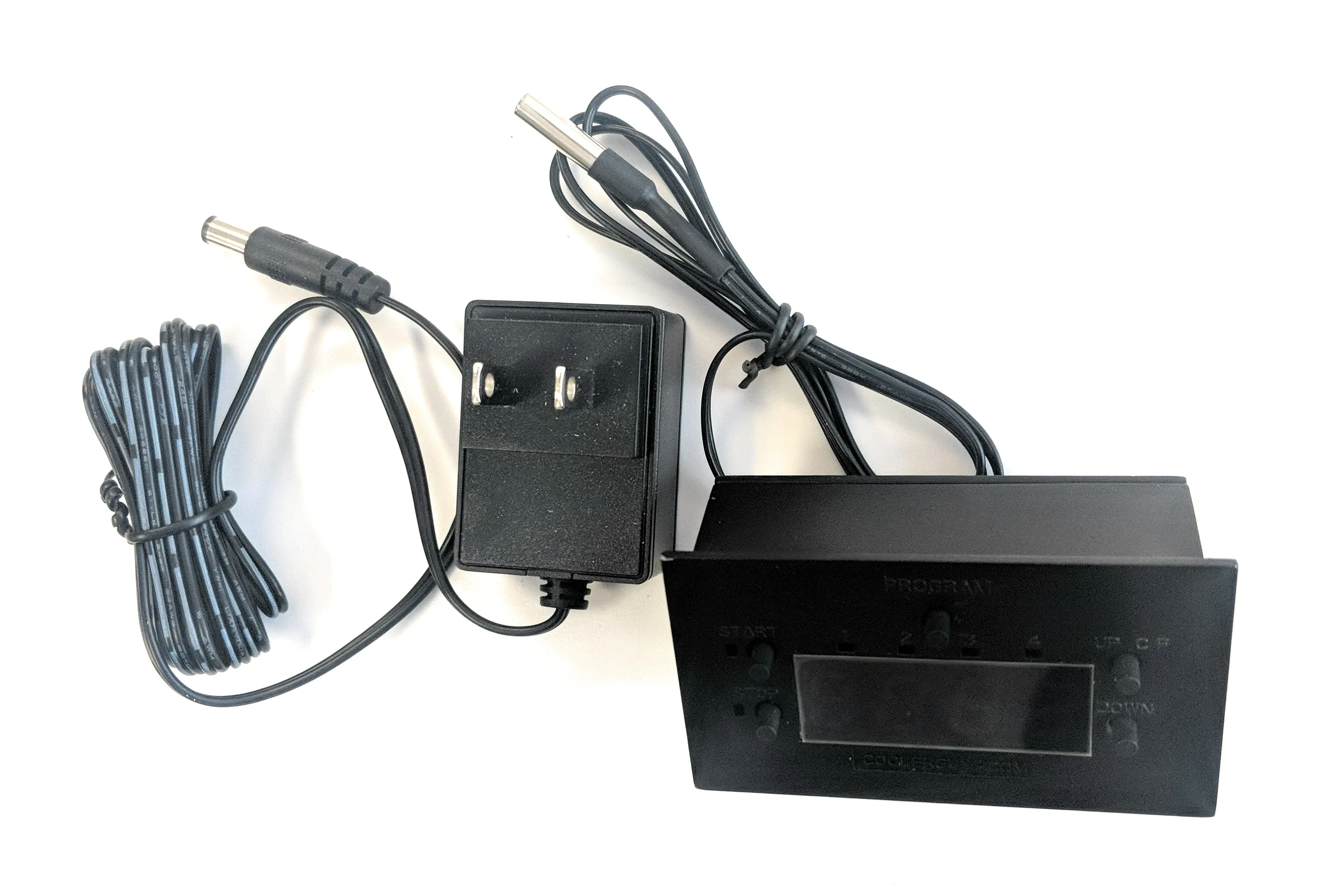

Kit Includes:- (1) Coolerguys AC to 12v DC 1A Power Supply
- (2)
- (2) Black Metal Powder Coated Bracket (6.25" x 6.25" x .125")
- (1) or
- (1)
- (2)
- (1)
- (8) Fan nuts and bolts
- (8) #6 - 1/2" black Cabinet screw
All necessary screws, cables, and fasteners to complete the unit
Completed dimensions: 6.25 x 6.25" for each bracket
Cabinet Cutout size: 5" x 5" (130 x 130mm) for each bracket

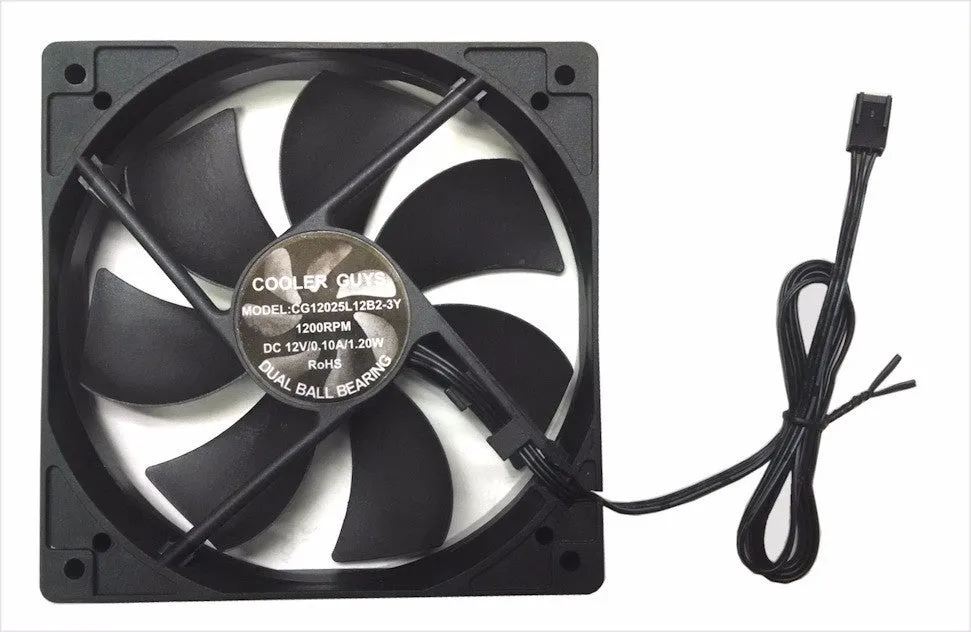

UNIT SPECIFICATIONS:
Fan Speed: 1200 RPM
Operation Voltage: 6.5~13.8 Volts
Input current: 0.30 Amp
Operation temperature: -10 to 65 C
Storage temperature: -40 to 70 C
Airflow: 92 CFM
Noise Level 23.4 dBA
(574 kb pdf)
This is a kit and some assembly is required.
We trust in our products at Coolerguys and test everything that is sent out! We happily extend a three-year replacement warranty to all our Coolerguys branded products.
